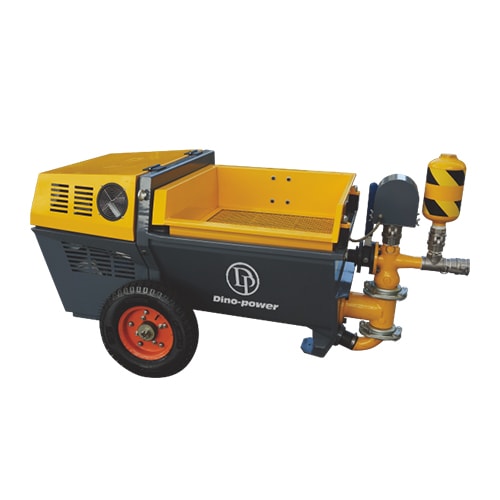

DP-UB30P Single CylinderCement Mortar SprayerwithPiston Pump

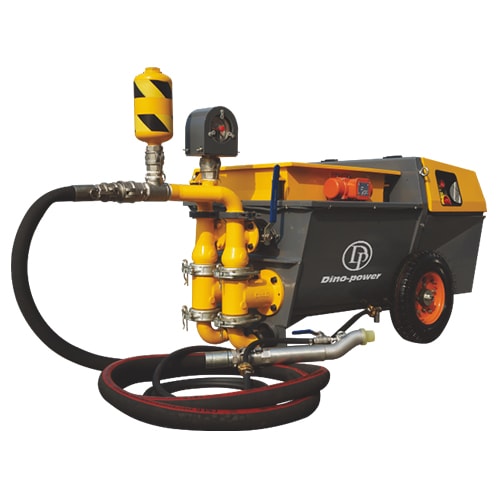

DP-UB80P双缸Cement Mortar SprayerwithPiston Pump
应用程序:
DP-UB30P(with single cylinder) and DP-UB80P(with dual cylinder)cement mortar sprayerwithpiston pump适用于喷洒各种干混合,湿混合和工作混合的普通水泥砂浆材料。
技术规格:
Model No. | DP-UB30P | dp-ub80p |
Input Power | 380V/50HZ 3-phase | 380V/50HZ 3-phase |
Motor Power | 3KW | 7.5KW |
Output Capacity | 30-35L/min | 65L/min |
Delivery Pressure | 15bar | 40bar |
Max. Grain Size | <6mm | <6mm |
Delivery Height | 12m | 20-30m |
交货距离 | 40m | 50-60m |
Feed Hopper Volume | 150L | 180L |
Feed Height | 650mm | 670mm |
N.W. | 250公斤 | 320kgs |
方面 | 1750*850*810mm | 2120*900*840mm |
The kit include the hose /spray gunin the package already.
DP-UB30P contains the hose of 35mm inner diameter of 30m length
and UB80P contains the hose of 50mm inner diameter of 50m length.
Features:
1.Withpiston pumpstructure, sturdy and durable, low wear-out rate.
2.Fast loading pump valve, easy maintenance, convenient clean-up.
3.Build-in air compressor and shaker screen, powerful and stable.
4.使用众所周知的电子组件,ABB的电动机超载保护器,遥控器spray gun, special made soft hose, easy operation.
