+86 18858210064- Model Number:DP-T5
- Motor power:2.2KW 2200W
- Motor type:DC Brushless Motor
- Flow rate:15L/min
- Max.pressure:20bar
- Package:plywood box
- Worn parts:rotor / stator
- Warranty:one year for main components

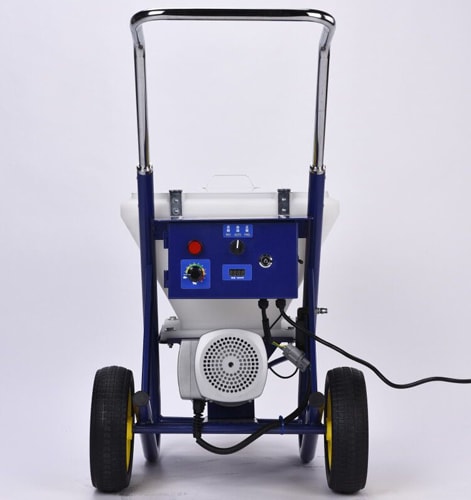

DP-T5 Wall Putty PlasterPaint Sprayer
DP-T5 NEW designedscrew pump is for spraying putty, plasterand other filler materials with a particle size up to 3mm.
Technical Data:
| Item No. | DP-T5 |
| Voltage/frequency | 220V 50Hz |
| Motor power | 2200W |
| Max. Output delivery | 15L/min |

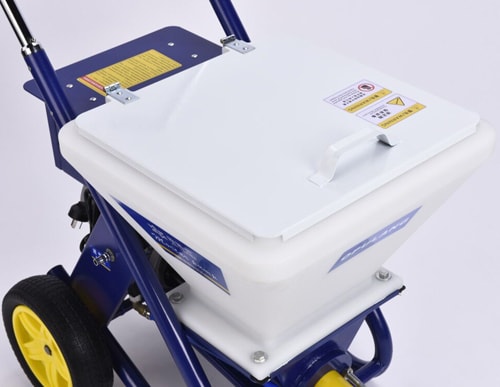

| Hopper capacity | 40L |
| Max. Grain size | 3mm |
| Max. Pressure | 20bar |
| Max. Delivery height | 15M |
Nozzle size: 4 6 8 10 four size available for different application such as putty, cement plaster, white cement, gypsum, lime based coating,textureetc. ( 6 nozzles are standard in the package)
Note:DP-T5 needs to be connected with one air compressor to work, our stand machine is without air compressor, machine only.
Air compressor requires: 7.5HP 100L tank 8bar air pressure.
Features:
The screw pump spraying system is much easier and faster than applyingtexturemanually.
Light weight and with wheels, convenient to move.
Quick assemble design, easy and fast maintenance.
Durable screw pump could be used for 5000 – 10000 square meters projects painting based on materials.
15L/min big output capacity.

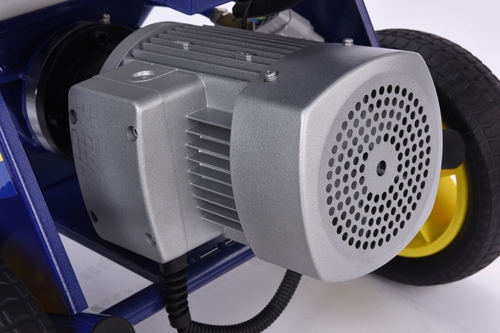

2.2KW DC brushless motor, powerful motor will drive heavy material at engough pressure for spraying.
High performanceputty plaster texture spray machine.
Therotor/stator pumpensures the material is pumped and sprayed out continuously and evenly.
Less Material Consumption
适用涂料:
putty plastertexture
Roof coatings
Fire protection coatings
Bitumen emulsions
Casement grouting mortar.
Elastic coating.
Acoustic plaster, artificial resin bonded
dispersion fillers
Mineral fillers
Etc.
