DP-HXP26/28/30 hydraulic-driven polyurea sprayer equipment

      Hydraulic-driven Polyurea Sprayer Reactor

      HXP-30 Hydraulic-drivenwww.vw033.com Reactor

      Hydraulic-driven Polyurea Sprayer Reactor

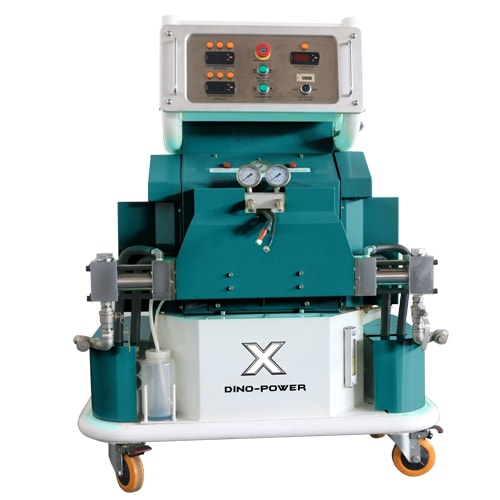

      HXP28 Hydraulic-drivenwww.vw033.com Reactor

      Hydraulic-driven Polyurea Sprayer Reactor

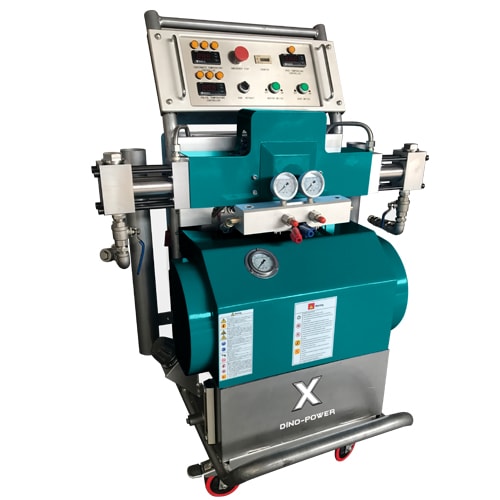

      HXP26 Hydraulic-drivenwww.vw033.com Reactor

      Item No. HXP26 HXP28 HXP30
      Voltage / phase 380v 50/60hz- 3ph 380v 50/60hz- 3ph 380v 50/60hz- 3ph
      Total power 21KW
      (Motor 4500W
      Main heater 6000W*2
      Heating hose 3500W
      Others 1000W)      		 26KW
      (Motor 5500W
      Main heater 8000W*2
      Heating hose 3500W
      Others 1000W)      		 28KW
      (Motor 5500W
      Main heater 9000W*2
      Heating hose 3500W
      Others 1000W)
      Driven Hydraulic-driven Hydraulic-driven Hydraulic-driven
      Air Supply 0.6~0.8MPa 1m³/min 0.6~0.8MPa 1m³/min 0.6~0.8MPa 1m³/min
      Viscosity range 200~1000CPS 200~1000CPS 200~1000CPS
      Application Polyurethane &www.vw033.com Polyurethane &www.vw033.com Polyurethane &www.vw033.com
      Mixing ratio 1:1 1:1 1:1
      Max. pressure 300bar/4350psi 350bar/5075psi 350bar/5075psi
      Output volume 2~12Kg/min 2~14Kg/min 2~15Kg/min
      Max. hose length 105M 120M 120M
      Heating temperature 0~80 ℃ 0~80 ℃ 0~80 ℃
      Net & Gross weight 216/350kgs 350/450kgs 357/500kgs
      Dimensions 120X90X155cm 120X90X155cm 120X90X155cm
      Contents in package Machine 1set, (TP3)10:1 transfer pump 2sets, Heating hose 15m, Heating whip hose 3M*2pcs, Self-cleaning spray gun 1 set, Repair kit 1set, Cleaning fluid, DOP 1kg Machine 1set, (TP3)10:1 transfer pump 2sets, Heating hose 15m, Heating whip hose 3M*2pcs, Self-cleaning spray gun 1 set, Repair kit 1set, Cleaning fluid, DOP 1kg Machine 1set, (TP3)10:1 transfer pump 2sets, Heating hose 15m, Heating whip hose 3M*2pcs, Self-cleaning spray gun 1 set, Repair kit 1set, Cleaning fluid, DOP 1kg

      DP-HXP30www.vw033.com equipment, simirlar to H-XP3, is designed for
      professionalwww.vw033.com spraying (or polyurethane spraying) that requires high pressure, and this is always the top no. 1 option for professional contractors/painters.
      Thewww.vw033.com machine is hydraulic-driven power system with the best performance,superior power and high volume output, etc.

      模型没有。: DP-HXP30
      Mode of driving: Hydraulic-driven
      Mixing Volumetric Ratio: 1:1
      Maximum Output Volume: 2.8gpm/10.6lpm
      Real Air consumption: 0.4CBM/MIN
      air compressor output: 0.6CBM/min
      Spraying materials: about 200 square meters per hour
      Maximum temperature: 88°C (190°F)
      Working temperature: 70-75°C
      Maximum pressure: 240bar / 3490psi
      Working pressure: 180-200bar / 2600-2900psi
      Heater power: 20.4kw
      Maximum hose length: 125m/410ft
      Power: 3-phase 400V/50Hz 52A
      Net weight: 271kgs
      Overall size: 95cm x 98cm x 120cm
      Packing dimension: 105cm x 108cm x 130cm

      Contents in Package:

      www.vw033.com machine 1 set, Transfer Pump 2 sets, Heating Hose 15m (50ft) 2500watt,

      Heating Whip Hose 1.5m (5ft),www.vw033.com 喷漆枪1套,

      Repair Kit 1 set, Cleaning Fluid 1 kg, DOP 1 kg,
