DP-7000 Professional Airless Diaphragm Pump SF7000 type

  • Model Number:DP-7000, DP-6000
  • Machine Power:Electric powered
  • Voltage:220-230V/50Hz or 110V/60Hz
  • Motor power:3.0-3.2kw/3000-3200w, 2.2-2.4kw/2200-2400kw
  • Motor type:Induction motor (brushless)
  • Pressure controlling:Mechanical regulator
  • Flow rate:7.0L/min, 1.85gpm (6.0L/min, 1.59gpm)
  • Max. tip size:0.035" / 0.031"
  • Max. hose length:90m/295ft, 40m/131ft
  • Max.pressure:25Mpa / 250bar / 3625psi
  • Spraying pressure:0.033”@180bar / 0.035”@200bar (0.031”@110bar / 0.029”@150bar)
  • Net weight:90公斤/ 198.5磅(50kgs/110Lbs)
  • Gross weight:101kgs/222.7Lbs (53kgs/117Lbs)
  • Package:Plywood case
  • Measurement:120*75*65cm/4*2.5*2.1in (67*53*54.5cm/1.87*1.74*1.8in)
  • Container load quantity:40SETS/20'FT, 90SETS/40'FT, 120SETS/40'HQ (152SETS/20'FT, 313SETS/40'FT, 376SETS/40'HQ)
  • Worn parts:diaphragm, inlet valve, outlet valve, pressure regulator, prime/spray valve
  • Warranty:one year warranty for main components(don't include easy worn spare parts)

DP-7000 diaphragm pump

DP-7000/DP-6000 professional airlessdiaphragm pump是强大的diaphragm pumpfor big sizes projects painting, high efficiency. It’s SF 7000 type heavy-dutydiaphragm pump, same quality, pretty working performance.

High suction power can be used for low to high viscosity materials painting, like varnish, stain, lacquer, anti-corrosion paint, acrylic paint, filling primer, latex, roof and wall coatings, fire-resistant coatings etc.

Features of DP-6000/DP-7000 Electric Airless Diaphragm Pump S7000 type:

Suitable for projects requiring more than oneairless spray gunto be uesed at the same time,

Extremely high working speeds.

Large nozzle sizes, high efficiency.

Stainless steel front pump body for long life.

Easy maintenance: the diaphragm can be repalced within 15 minutes.

Big pneumatic wheels, easy moving.

Quick clean suction system.

Two operating settings, work with 20 Litre hopper is also available.

Rigid suction system is ideal for large production residential, large expanses of roofing, major commercial projects, maintenance and industrial applications.

Technical Data of DP-6000/DP-7000 Electric Airless Diaphragm Pump S7000 type:

Model No. DP-7000 DP-6000
Voltage 220-230V/50Hz or 110V/60Hz 220-230V/50Hz or 110V/60Hz
Motor power 3.0-3.2kw/3000-3200w 2.2-2.4kw/2200-2400kw
Max. operating pressure 25Mpa / 250bar / 3625psi 25Mpa / 250bar / 3625psi
Max. volume flow 7.0L/min, 1.85gpm 6.0L/min, 1.59gpm
Max. tip size 0.042” @130bar0.035”@200bar0.033”@180bar 0.035”@200bar0.033”@180bar”@150bar
Max. hose length 90m/295ft 90m/295ft
Net weight 90公斤/ 198.5磅 50kgs/110Lbs
Gross weight 101kgs/222.7Lbs 53kgs/117Lbs
Measurement 120*75*65cm 67*53*54.5cm

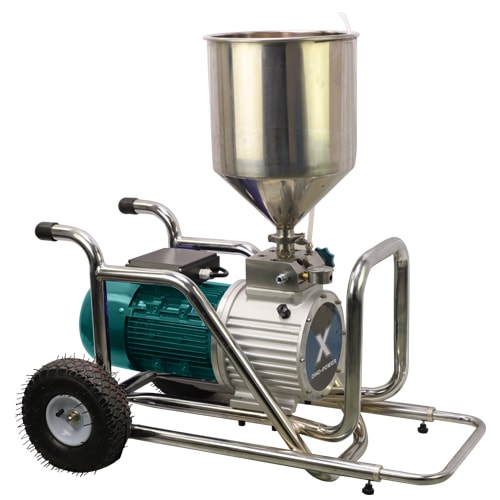

DP-7000 diaphragm pump with hopper

with 20L stainless steel hopper


standard parts in package
