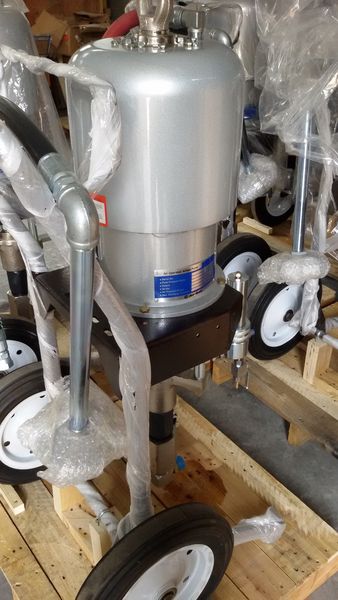

XPRO-681(68:1)/ 631 (63:1) / 451(45:1) Air-assisted Airless Pump Equipment

  • Model Number:XPRO-681
  • Machine Power:Pneumatic powered
  • Pressure controlling:echanical regulator
  • Flow rate:9.0L/min, 2.7gpm
  • Air pressure:3-6.5bar / 43.5-94.25psi
  • Spraying pressure:44.2Mpa / 442bar / 6409psi
  • Net weight:85kgs / 187.4Lbs
  • Package:Plywood case
  • Worn parts:V-packing and piston rod
  • Warranty:One year for main components(don't include easy worn parts)
  • Pressure ratio:68:1
  • Stroke:120mm
XPRO-681(681) 631 (631) 451(451) Air assisted airless pump equipment

XPRO-681(68:1)/631 (63:1) /451(45:1) Air assisted airless pump equipment

[doptg id=”39″]

The XPRO-681(68:1)/ 631 (63:1) / 451(45:1)pneumatic Airless pump equipmentare air-assistedairless sprayerwhich is efficient of handling fluids such as epoxy primers, water proof coatings, epoxy mostics, fire proof cooling, fire proof coatings, higher volume solid & high viscosity coatings.

Specification of the 681(68:1)/ 631 (63:1) / 451(45:1) pneumatic Airless pump equipment:

Pressure Ratio 68: 1 63: 1 45:1
Max. delivery 9L/ min 9.67L/ min 12.54L/min
Operating Air Pressure 3~6.5 Kgf / ㎠ 3~7 Kgf / ㎠ 3~7 Kgf / ㎠
Max. Discharge Pressure 442 bar 441 bar 315bar
Pump Dimension 68×72×120cm 68×72×112cm 68×72×112cm
Pump Weight 85kg 85kg 85kg
Noise Level 70~80 db 90~105 db 90~105 db
Air Motor Stroke 120 mm 120 mm 120 mm

Applications of the 681(68:1)/ 631 (63:1) / 451(45:1) pneumatic Airless pump equipment:

• Fire retardant coatings.
• Marine and shipyard
• Internal & external pipe coatings.
• High solids epoxy primers and coatings
• Shipping container manufacturing
• Railcar manufacturing and repair
• Off-shore oil platform production
• Railcars and other transport vehicles
• Bridge maintenance and new construction
• Nuclear and conventional power facilities
• Structural steel and corrosion protection

Features of the 681(68:1)/ 631 (63:1) / 451(45:1) pneumatic Airless pump equipment:

• Superior performance with the highest viscosity coatings
• Long-life air motor keeps maintenance costs low
•Designed for handling variety of coatings with powerful spray & with stands the toughest working conditions
•Positive displacement, piston pump design provides uniform, easily controlled delivery
•High flow rate light & easy to handle, long life high quality precision parts
•Higher pressure ratio for higher flows, l and better atomization
•More durable with longer life. Mechanical air motor provides higher efficiency even with lower air inlet pressure
•Properly designed filters reduces pressure drop & improves flow

•Air assistedairless sprayerpump equipment is a heavy duty pump sprayer system for industrial coating, industrial painting project.

pneumatic airless paint sprayers

filter system of air assisted airless paint equipment

big stainless steel fluid pumps airless sprayers
